Frequently Asked Questions

How do I verify USB serial port binding?

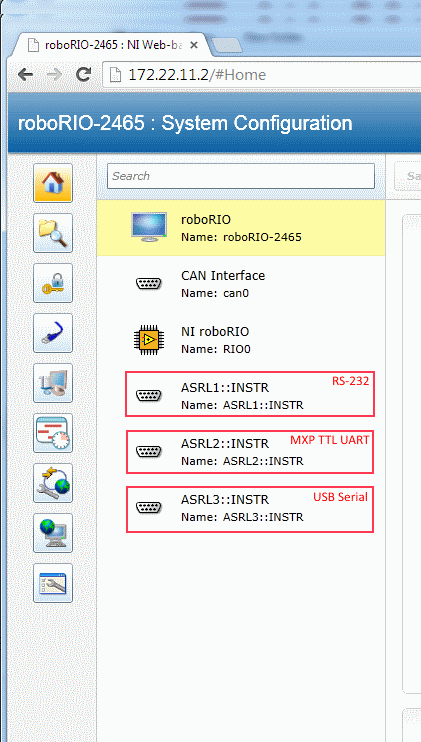

If connecting the RoboRIO to the navX-MXP via one of the RoboRIO USB host ports, verify that the navX-MXP’s USB interface is correctly bound to RoboRIO Serial Port ASRL3:INTR, as shown below.

This information is displayed in the RoboRIO’s webdashboard. For instance, if you have connected your RoboRIO to your PC via USB cable (connected to the RoboRIO’s USB Device Port), the web dashboard can be viewed within a web browser (in this case, at http://172.22.11.2).

roborio_webdashboard_ports
