• 9-Axis Sensor (Gyro / Accelerometer / Magnetometer)
• Intelligent Motion Processor
• RoboRIO Expansion I/O
Supercharge your robot: Field-oriented drive, auto-balancing, collision detection, motion detection, auto-rotate-to-angle, and more…
Expand your RoboRIO: 10 Digital I/Os, 4 Analog Inputs, 2 Analog Outputs, and TTL UART / I2C / SPI ports.
Plug-n-Play: easily installed via RoboRIO’s MXP Expansion connector or USB port.
Open Source: firmware source code, board schematics/layout & bill of materials available online.
Easy-to-integrate: C++, Java and LabView libraries and sample application code simplify integration.
Backwards-compatible: existing nav6 users can upgrade easily.

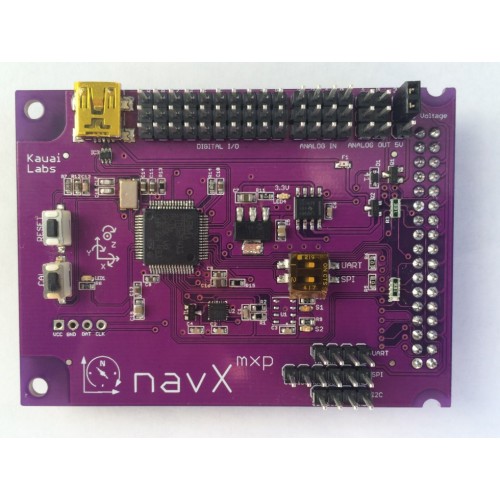

navX MXP was designed to use the RoboRIO MXP Expansion Connector - enabling plug-n-play installation on the National Instruments RoboRIO, and adding digital, analog I/O and UART / SPI / I2C port expansion.
Second, navX MXP features a 32-bit ARM processor, the Invensense MPU-9250 sensor system-on-chip, and software algorithms which take nav6 technology to the next level, including enhanced sensor calibration and algorithms which fuse gyro, accelerometer and magnetometer data into a “9-axis heading”. The “9-axis heading” is enabled by magnetometer calibration tools (available online at no cost) and magnetometer disturbance detection and data fusion algorithms. This capability is known within the aerospace industry as an “Attitude/Heading Reference System” (AHRS). Kauailabs brings this high-tech AHRS capability to FIRST FRC teams - to use, learn and explore. navX MXP is a key component of Kauailabs’ ongoing efforts to make state-of-the-art navigation technologies used in autonomous vehicles (e.g., the Google Car) available to robotics students and enthusiasts as low-cost, open-source products.
